1DO Remote I/O Module (WiFi/Ethernet)

Remote I/O Module, , ,

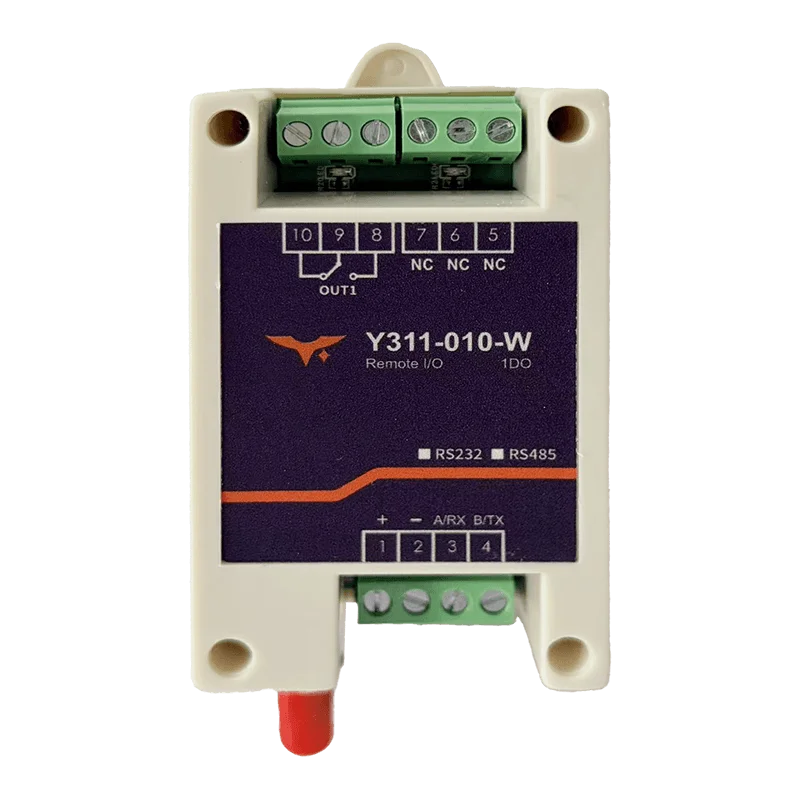

Y311-010 1DO Remote I/O Module with WiFi and Ethernet

Y311-010-W/R Remote I/O Module – 1 Relay Output over WiFi or Ethernet

Model: Y311-010

Key Features

  • Single-channel 10 A relay output for remote switching and status control

  • Shared Modbus register model for both Y311-010-W and Y311-010-R variants

  • WiFi and Ethernet versions differ only in network interface and default network parameters

Overview

The Y311-010 hardware is offered as Y311-010-W and Y311-010-R variants. Both share one 10 A relay output and Modbus register logic, while only the network interface and default network settings differ.

Key Features

  • Single-channel 10 A relay output for remote switching and status control

  • Shared Modbus register model for both Y311-010-W and Y311-010-R variants

  • WiFi and Ethernet versions differ only in network interface and default network parameters

  • Default serial parameters are 9600 bps, 8-N-1, with device address 0xFE by default

Specifications

Io ConfigurationDigital Inputs0
Digital Outputs1
Relay Output1 x 10 A
Power SupplyVoltageDC 7~40V
CommunicationProtocolModbus RTU
Default Serial9600 bps, 8-N-1
Device Address0xFE
Wifi Variant{‘model’: ‘Y311-010-W’, ‘network’: ‘2.4 GHz WiFi (AP/STA)’, ‘default_ip’: ‘192.168.16.254’, ‘default_port’: ‘60000 / 10000’}
Ethernet Variant{‘model’: ‘Y311-010-R’, ‘network’: ’10/100M RJ45 Ethernet’, ‘default_ip’: ‘192.168.1.7’, ‘default_port’: ‘10000’}
