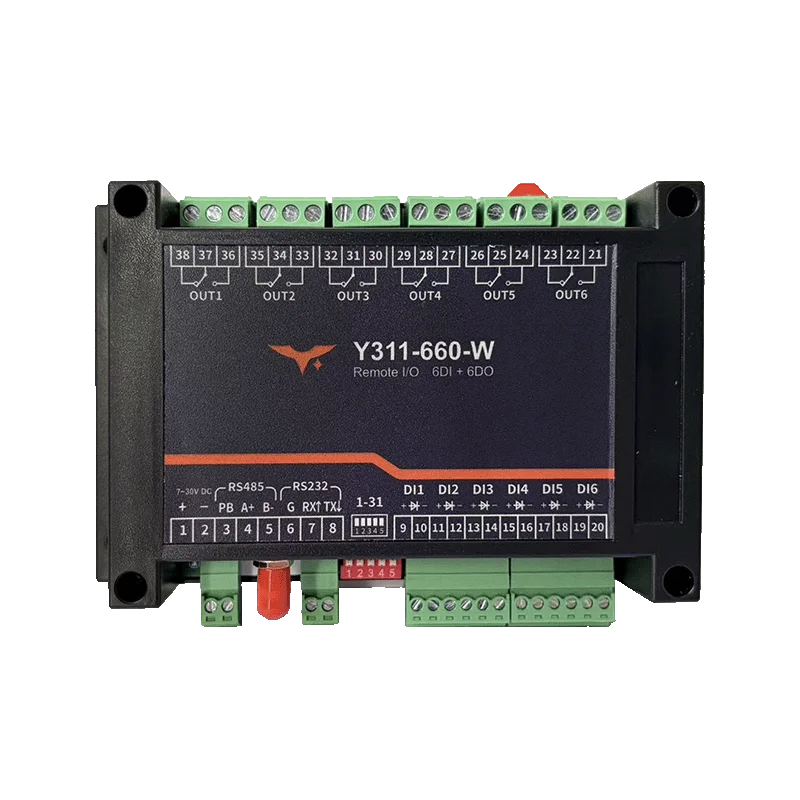

Y311-660 6DI 6DO Remote I/O Module with WiFi and Ethernet

Y311-660-W/R Remote I/O Module – 6DI/6DO over WiFi or Ethernet

Model: Y311-660

Key Features

  • 6DI + 6DO remote I/O node for distributed status collection and relay control

  • Shared Modbus register model for both WiFi and Ethernet variants

  • WiFi and Ethernet versions differ only in network interface and default network parameters

Overview

Y311-660 extends the Y311 remote I/O architecture to six digital inputs and six relay outputs. The W and R models share the same control logic, register layout, and I/O hardware, with networking as the only variant difference.

Key Features

  • 6DI + 6DO remote I/O node for distributed status collection and relay control

  • Shared Modbus register model for both WiFi and Ethernet variants

  • WiFi and Ethernet versions differ only in network interface and default network parameters

  • Default serial parameters are 9600 bps, 8-N-1, with device address 0xFE by default

Specifications

Io ConfigurationDigital Inputs6
Digital Outputs6
Power SupplyVoltageDC 7~40V
CommunicationProtocolModbus RTU
Default Serial9600 bps, 8-N-1
Device Address0xFE
Wifi Variant{‘network’: ‘2.4 GHz WiFi (AP/STA)’, ‘default_ip’: ‘192.168.16.254’, ‘default_port’: ‘60000 / 10000’}
Ethernet Variant{‘network’: ’10/100M RJ45 Ethernet’, ‘default_ip’: ‘192.168.1.7’, ‘default_port’: ‘10000’}
